KTM 65 Rear Axle Blocks with Integrated Crash Sliders (Pair)
PlazCutz Racing KTM 65 rear axle blocks are CNC machined aluminium replacement chain adjuster blocks designed to improve wheel changes, maintain accurate chain adjustment, and provide additional crash protection for the rear axle and swingarm area.
Unlike many aftermarket slider kits that use a long M6 bolt passing through the hollow rear axle, these axle blocks incorporate a replaceable crash slider directly into the block itself. This creates a stronger, cleaner, and more durable solution that is less likely to be damaged during a crash or slide.
Each block is precision CNC machined from 6061 T6 aluminium and features an integrated thread for the axle in the adjuster housing, allowing the original chain adjustment system to function exactly as intended while providing a secure mounting point for the crash slider.
The replaceable slider bobbins are CNC machined from durable black acetal and mounted using an M8 fixing bolt for increased strength. During testing, smaller M6 fixings were found to bend or fail too easily in crashes, so the design was upgraded to M8 throughout.
Designed for racing, these blocks make rear wheel installation easier, provide additional protection during crashes, and eliminate the need for vulnerable axle-through slider systems.
If the slider becomes damaged, it can be replaced separately without replacing the aluminium axle blocks.
Suitable for KTM 65cc models and equivalent Husqvarna, Gas Gas 65 motorcycles using the same axle block design.

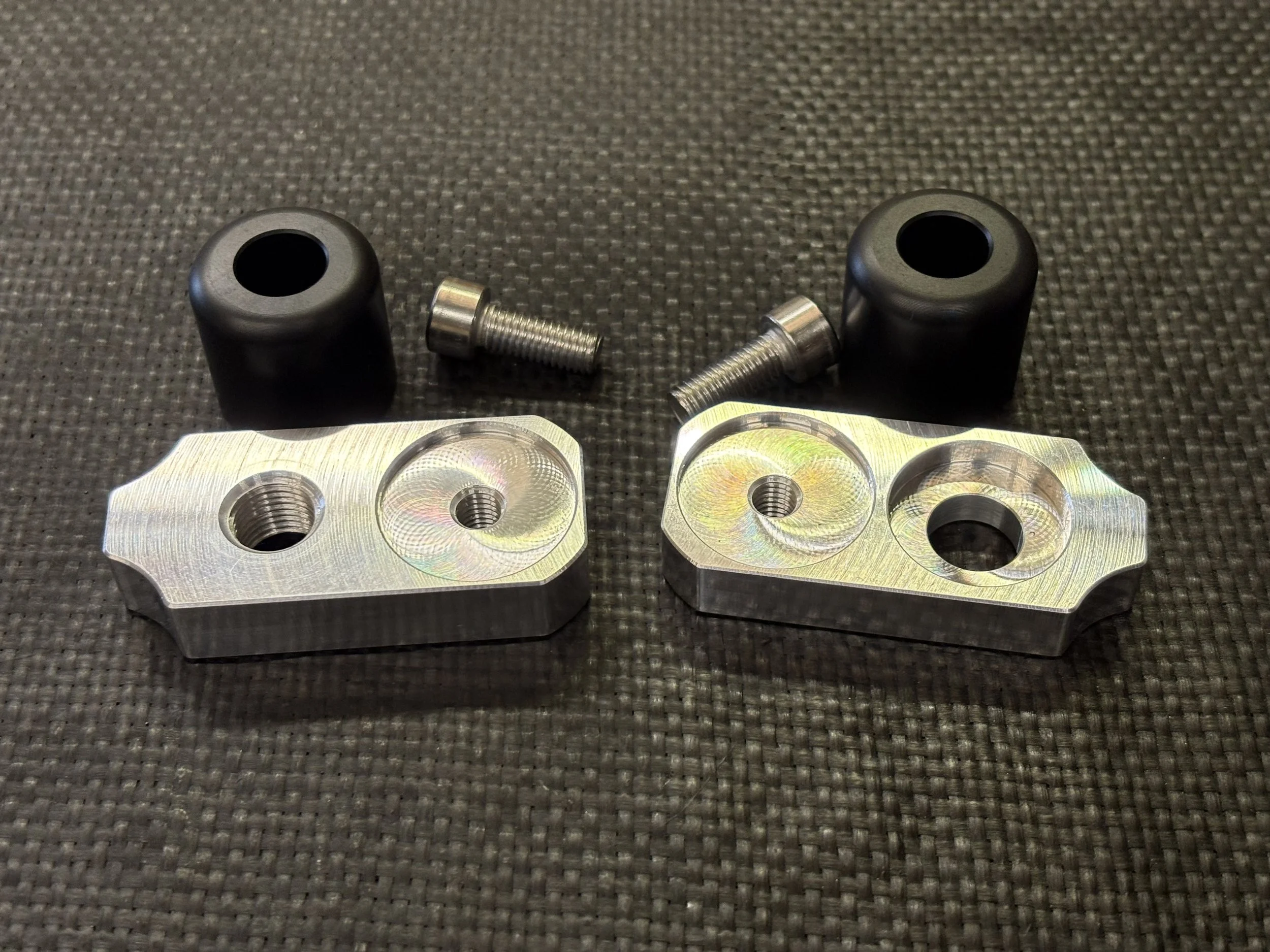

Kit Contains:
2x Chain Adjuster Blocks
2x M8 Axle Slider Bobbins 28mm long
2x M8 Fixing Bolts
Replacement Slider Bobbins can be found here:
Replacement Slider Bobbins
All of our sliders & bobbins are compatible with any of our chain block adjusters.
Built for racing. Designed for reliability.
